Overview

Basic Info.

Model NO.	YMDL-1
Type	Sludge Dewatering Machine
Method	Physical Treatment
Usage	Industrial, Home, Agriculture, Hospital
Material	SS304
Control Type	Full Automatic or Self-Automatic
Electrical Component	Omron/Customize
Sludge Flow Treating Capacity	0.14m3/H-55m3/H
Outlet Cake Moisture Content	70%-80%
Absolute Dry Mud	10-75kg/H
Application	Food, Hotel, Beverage, Chemical, Leather
Keyword	Sludge Dehydrator
Name	Sludge Dewatering
Function	Municipal Wastewater Treatment
Transport Package	Plywood Case
Specification	3.8x0.7xx1.6m
Trademark	yimei
Origin	Qingdao, Shan Dong
HS Code	8421192000
Production Capacity	200 Sets/Month

Product Description

Working principle:

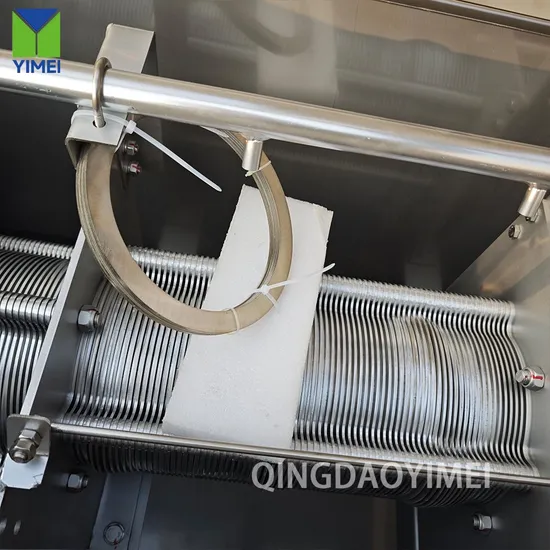

Thickening: As the screw-driven shaft comes to life, its surrounding rings engage in a captivating dance of motion, moving up and down with precision. This orchestrated movement ensures that the majority of water is elegantly pressed out from the thickening zone, cascading down graciously into the filtrate tank by the gentle force of gravity.Dewatering: In a seamless transition, the now-thickened sludge embarks on its journey from the thickening zone to the dewatering zone. With each forward motion, the twist of the screw shaft tightens with increasing precision, amplifying the pressure within the filter chamber. Coupled with the formidable pressure from the back-pressure plate, this system efficiently extracts moisture, yielding dryer sludge cakes as a testament to its prowess.Self-cleaning: Ingenious in its design, the moving rings continuously rotate under the guided propulsion of the running screw shaft. This motion deftly cleanses the gaps between the fixed and moving rings, skillfully averting the common pitfalls of clogging that plague traditional dewatering equipment.

Product feature:

Special pre-concentrating device, wide feed solids concentration: 2000mg/L-50000mg/LThe dewatering section of the MSP (multi-plate screw press) is an engineering marvel, featuring both a thickening zone and a dewatering zone. A strategically positioned special pre-concentrating device within the flocculation tank enhances its capability. As a result, it confidently handles wastewater with low solids content without breaking a sweat. Its impressive adaptability allows it to process feed solids concentration ranging from a low 2000mg/L to a robust 50000mg/L.




technical parameter:

Founded in 2003, Qingdao Yimei Environmental Engineering Co., Ltd. stands as a beacon of innovation and excellence in the environmental engineering sector. With a significant investment of 30 million yuan and a sprawling plant area exceeding 13,000 square meters, we epitomize quality and expertise. As a premier provider of containerized sewage treatment equipment, dissolved air flotation machines, and state-of-the-art sludge dewatering screw press machines, we are at the forefront of environmental solutions. Our product lineup also includes inclined plate sedimentation tanks and cutting-edge flocculant polymer automatic dosing systems. Driven by a commitment to quality, our exceptional team excels in product development, design, thorough quality control, and meticulous inspection processes. Adhering to stringent international standards, we have implemented a modern quality management system to ensure only the finest products and services reach our clientele. Our expansive reach in the global market is underscored by products that proudly bear the CE certification and possess esteemed product patent licenses. Our global footprint is further enhanced by strategically located after-sales service centers and offices, including in the Philippines and other key international locations. These centers are dedicated to providing round-the-clock, 24-hour on-site service, ensuring uninterrupted support and swift solutions for our valued customers. At Qingdao Yimei Environment Project Co., Ltd., we embrace innovation and customization. We offer versatile ODM and OEM customization options, delivering tailored made-to-order solutions with 3D design capabilities, all within a remarkable 24-hour timeframe. We encourage you to share your visionary ideas and unique concepts with us. Our team is eager to collaborate with you, transforming those visions into tangible, high-quality products that meet and exceed your expectations.

Q. How long is the warranty period? A. The warranty period for our products is 12 months from the date of arrival at the destination. We provide professional after-sales service. Q. What services can we provide? A. Acceptable delivery terms: FOB, CFR, CIF, EXW; Acceptable currencies: US dollars, RMB; Acceptable payment methods: telegraphic transfer, letter of credit; Languages: English, Chinese, Japanese, Arabic, French. Q. How do we ensure product quality? A. All products are subject to strict quality inspection and testing before shipment, and we have obtained ISO 9001 quality management system certification. Our products also have CE certifications.Q.How long is the warranty period? A.The warranty period for our products is 12 months from the date of arrival at the destination. We provide professional after-sales service.

Product Description

SLUDGE TRANSFER PUMP The innovative sludge transfer pump facilitates the seamless transportation of sludge from the storage tank to the metering tank, ensuring a smooth journey through the sludge conveying system.

FLOCCULATION MIXING TANK In the heart of the flocculation mixing tank, sludge is carefully metered and transported, with any remaining sludge artfully redirected back to the storage tank by adjusting the water level, maintaining a harmonious balance.

BLENDER Infused with precision, the polymer flocculant seamlessly integrates with the sludge, instigating a reaction that forms flocculant. This concoction is then expertly transported to the screw's main body, advancing the dewatering process.

SCREW CONCENTRATION PART Within the screw concentration part, sludge is guided decisively into the screw body, where it undergoes a powerful transformation. The changing diameter and pitch of the screw generate immense extrusion pressure, efficiently extracting moisture and completing the dehydration process.

BACK PRESSURE PLATE DEHYDRATION In the refined back pressure plate dehydration process, the narrowing gap between the moving and fixed rings intensifies the dehydration of decement cake. The formidable back pressure plate plays a pivotal role, ensuring that the mud cake is thoroughly dehydrated and expertly discharged.

Install mode	Overground
Voltage	Customize
Size	4mx0.95mx2m
Control mode	Full automatic or self-automatic
Function	Absolute Dry mud 30~75kg/h

model	DS standard capacity		sludge flow rate
	Low concentration→ high concentration		2000mg/L	5000mg/L	10000mg/L	20000mg/L	25000mg/L	50000mg/L
YMDL131	6kg/h	12kg/h	1.5m³/h	1m³/h	0.8m³/h	0.4m³/h	0.3m³/h	0.2m³/h
YMDL131	6kg/h	15kg/h	3m³/h	1.2m³/h	1m³/h	0.5m³/h	0.4m³/h	0.3m³/h
YMDL132	12kg/h	30kg/h	6m³/h	2.4m³/h	2m³/h	1m³/h	0.8m³/h	0.5m³/h
YMDL133	18kg/h	40kg/h	9m³/h	3.6m³/h	3m³/h	1.5m³/h	1.2m³/h	0.8m³/h
YMDL201	9kg/h	20kg/h	5m³/h	2m³/h	1.5m³/h	0.8m³/h	0.6m³/h	0.45m³/h
YMDL202	18kg/h	40kg/h	9m³/h	4m³/h	3m³/h	1.6m³/h	1.2m³/h	0.9m³/h
YMDL203	27kg/h	60kg/h	14m³/h	6m³/h	4.5m³/h	2.4m³/h	1.8m³/h	1.35m³/h
YMDL301	30kg/h	75kg/h	15m³/h	6.5m³/h	5m³/h	2.5m³/h	2m³/h	1.5m³/h
YMDL302	60kg/h	150kg/h	28m³/h	13m³/h	10m³/h	5m³/h	4m³/h	3m³/h
YMDL303	90kg/h	225kg/h	42m³/h	19.5m³/h	15m³/h	7.5m³/h	6m³/h	4.5m³/h
YMDL401	40kg/h	200kg/h	20m³/h	10m³/h	8m³/h	6m³/h	5m³/h	4m³/h
YMDL402	80kg/h	400kg/h	40m³/h	20m³/h	16m³/h	12m³/h	10m³/h	8m³/h
YMDL403	120kg/h	600kg/h	60m³/h	30m³/h	24m³/h	18m³/h	15m³/h	12m³/h
YMDL404	200kg/h	800kg/h	70m³/h	38m³/h	30m³/h	24m³/h	20m³/h	16m³/h
